Product overview ——

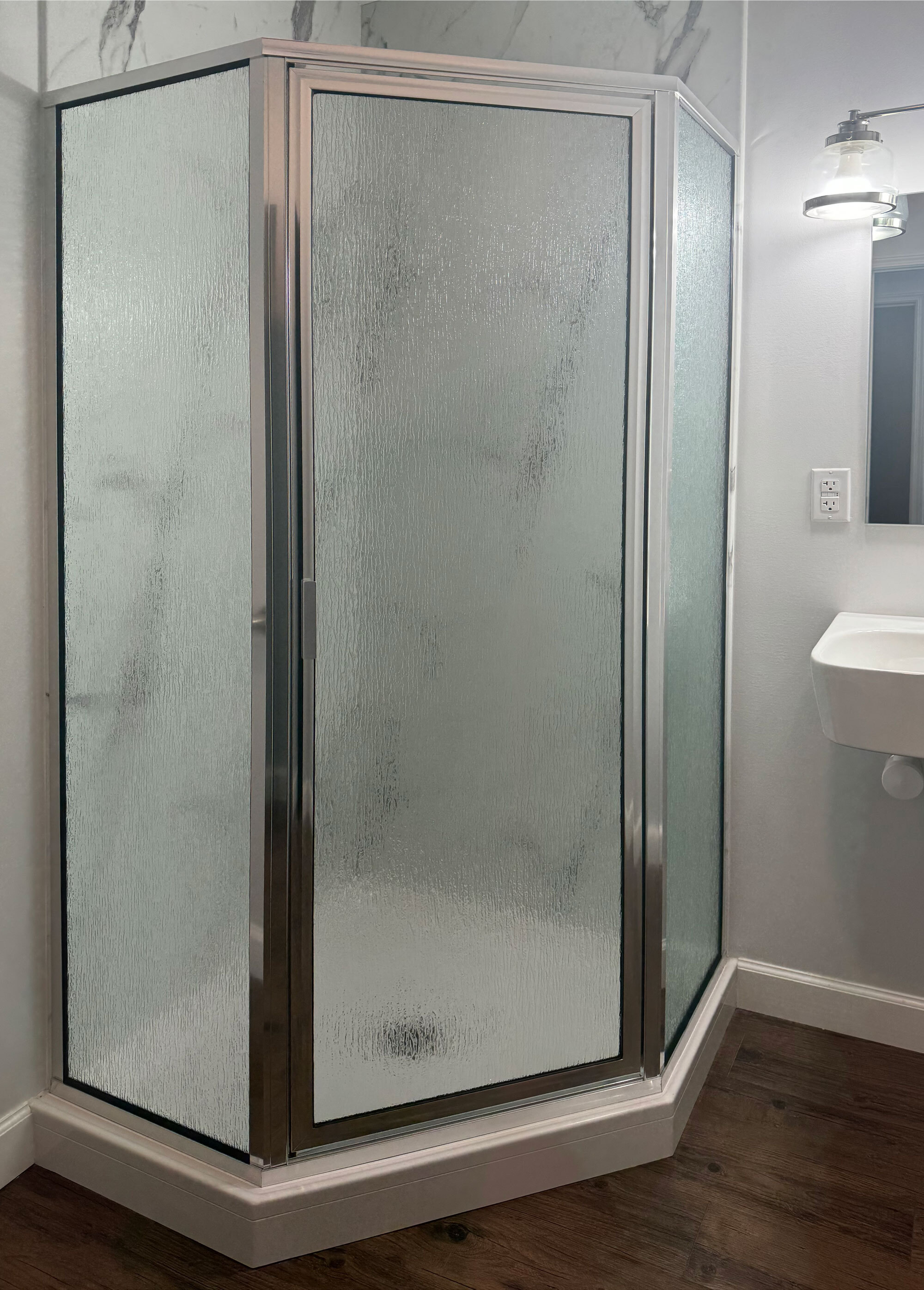

Traditional in style, the Deluxe framed neo-angle shower door offers stability, security, and functionality in one complete package. The door has a full length continuous hinge that provides stability with every open and is reversible for left or right installation.

  • Door swings out only
  • Reversible on install for a left or right swing
  • Drip rail system includes a channel that keeps the water in the shower
  • A full-length magnet holds the door tightly closed
  • Standard ranges for centerline dimensions from 60 to 108-inches
  • Standard height options of 65.1, 68.6, 72.1, or 76.1-inches
  • Custom height available up to 84-inches tall
  • Buttress and/or Notched Panel configurations for the panels are available for custom order
  • Custom special angle that is not 135 degrees is available
  • Modification for Steam is available
  • Reference for Fiberglass Specific Models and Sizes

    Basco Model

    Fiberglass Manufacturer Model

    Centerline Dimensions (in.)

    Basco Model Height (in.)

    160AK

    Aker KDNAS

    15-1/2 x 26-1/2 x 151/2

    68-5/8

    160AKA

    Aker SH-NA

    17-1/2 x 24-3/8 x 17-1/2

    68-5/8

    160AU

    Aquarius G3892NA

    18-15/16 x 23-7/8 x 18-15/16

    68-5/8

    160CN

    Clarion SP3838 Neo

    16-7/8 x 24-1/4 x 16-7/8

    68-5/8

    160FL

    Florestone Neo 38"

    17-1/2 x 24-7/8 x 17-1/2

    68-5/8

    160FZ

    Fiberez #12

    16-7/8 x 24-1/4 x 16-7/8

    68-5/8

    160HM

    Hamilton 4080

    18 x 23-7/8 x 18

    68-5/8

    160KH

    Kohler K1517

    15-1/2 x 28-1/8 x 15-1/2

    68-5/8

    160LSA

    Aquatic 1382NAC, 1382NACK

    17-1/2 x 22-5/8 x 17-1/2

    65-1/8

    160LSB

    Aquatic 1382NA2P

    17-5/8 x 23-7/8 x 17-5/8

    65-1/8

    160LSC

    Aquatic 1382NAT

    17-1/2 x 22-5/8 x 17-1/2

    68-5/8

    160MTA

    Mustee 3838C

    18-15/16 x 23-3/8 x 18-15/16

    68-5/8

    160MTB

    Mustee 3636C

    16-7/8 x 24-1/4 x 16-7/8

    68-5/8

    160RL

    Royal Bath N3838

    16-3/4 x 25 x 16-3/4

    68-5/8

    160SO

    Salo 138/238

    16-1/2 x 24-1/4 x 16-1/2

    68-5/8

    160ST

    Sterling V38NHG

    15-7/8 x 27-7/8 x 15-7/8

    67-5/8

    160SWA

    Swan R38NEO

    18-15/16 x 23-3/8 x 18-15/16

    68-5/8

    160SWB

    Swan R36NEO

    16-7/8 x 24-1/4 x 16-7/8

    68-5/8

    160WR

    Warm Rain 490

    16-3/4 x 25 x 16-3/4

    68-5/8

    • Modular opening widths and heights are subject to change without notice. Basco recommends all units be individually measured prior to placing order.
    • Basco is not responsible for costs incurred by incorrect published dimensions. Proper dimensions for installation are the sole responsibility of the purchaser.

Technical Specifications ——

OPENING WIDTH RANGE(S)

Total widths up to 108"

DOOR OPERATION

Swinging

HEIGHT OPTION(S)

65-1/8"

68-5/8"

72-1/8"

76-1/8"

Custom up to 84"

FRAME STYLE

Framed

GLASS THICKNESS

3/16"

DOOR SHAPE

Neo Angle
